AWSで作るはじめてのETL【Glue DataCatalog】 ​

概要 ​

csv連携されるファイルのカラム定義をGlue DataCatalogにて行う。

Glue ​

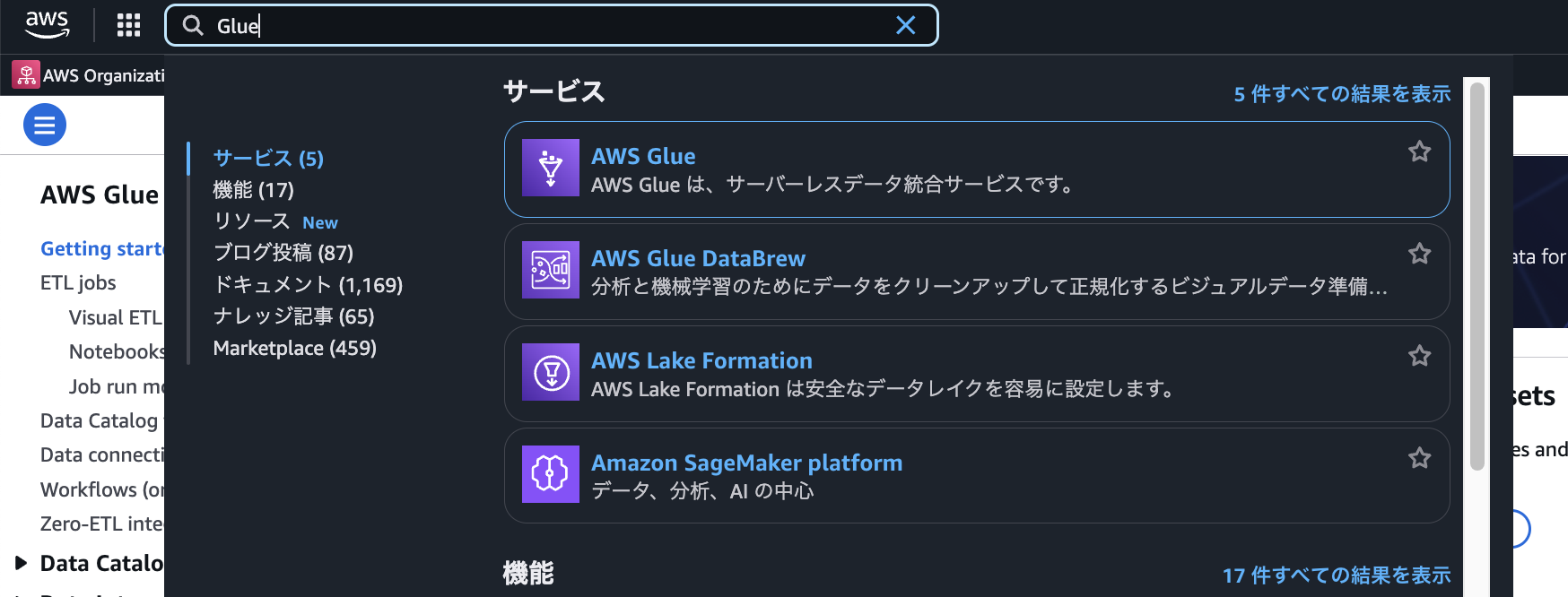

Glueを選択

Datacatalog ​

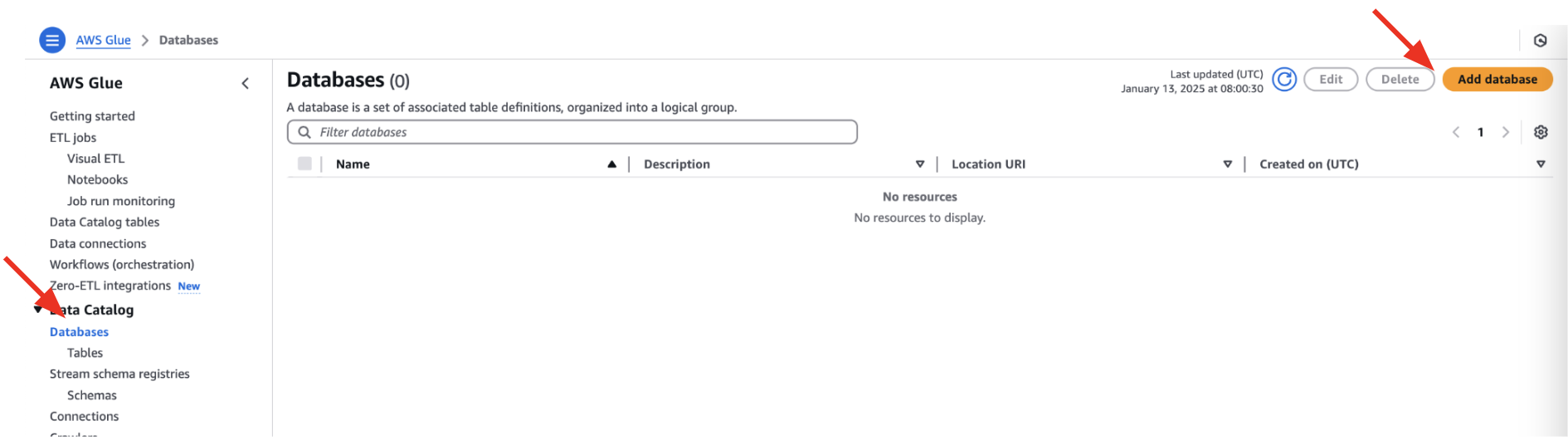

Data CatalogにてDatabasesを選択

Add Databaseをクリック

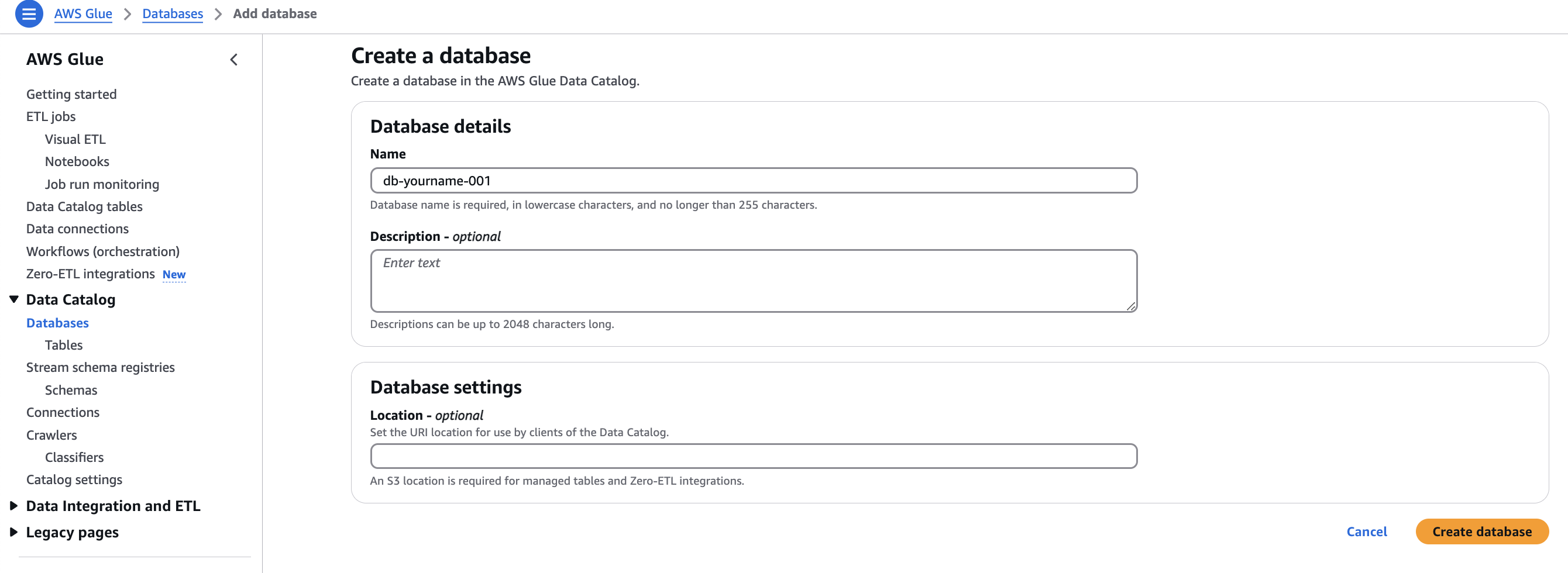

Create a database ​

db-[自分の名前]-[番号]

Create databaseをクリックして作成

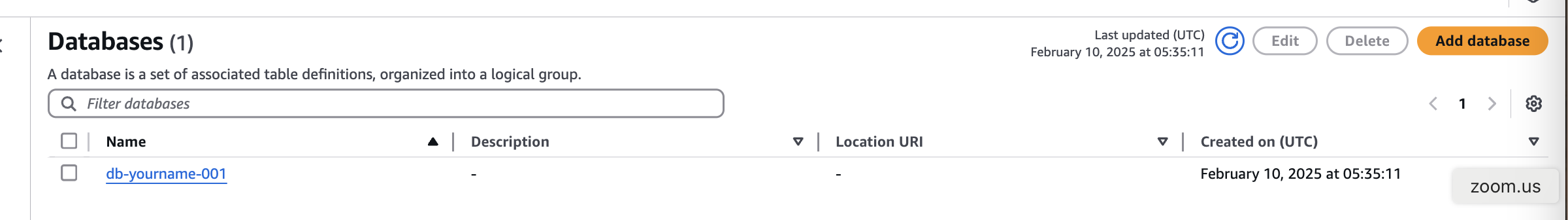

完了 ​

でけた

Tables ​

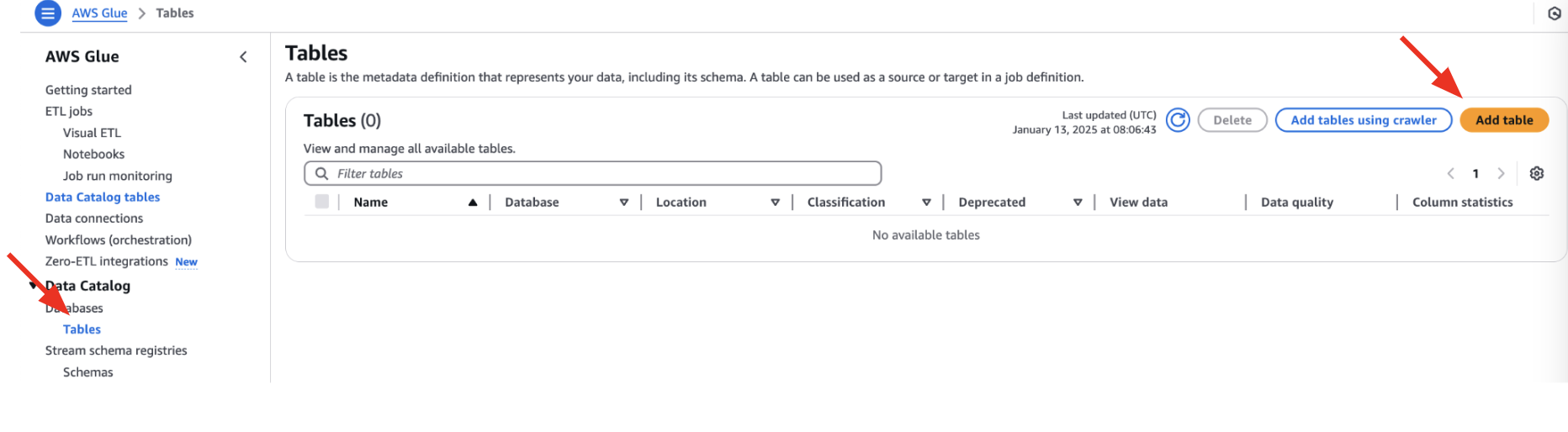

Databases > Tables にて

Add tableをクリック

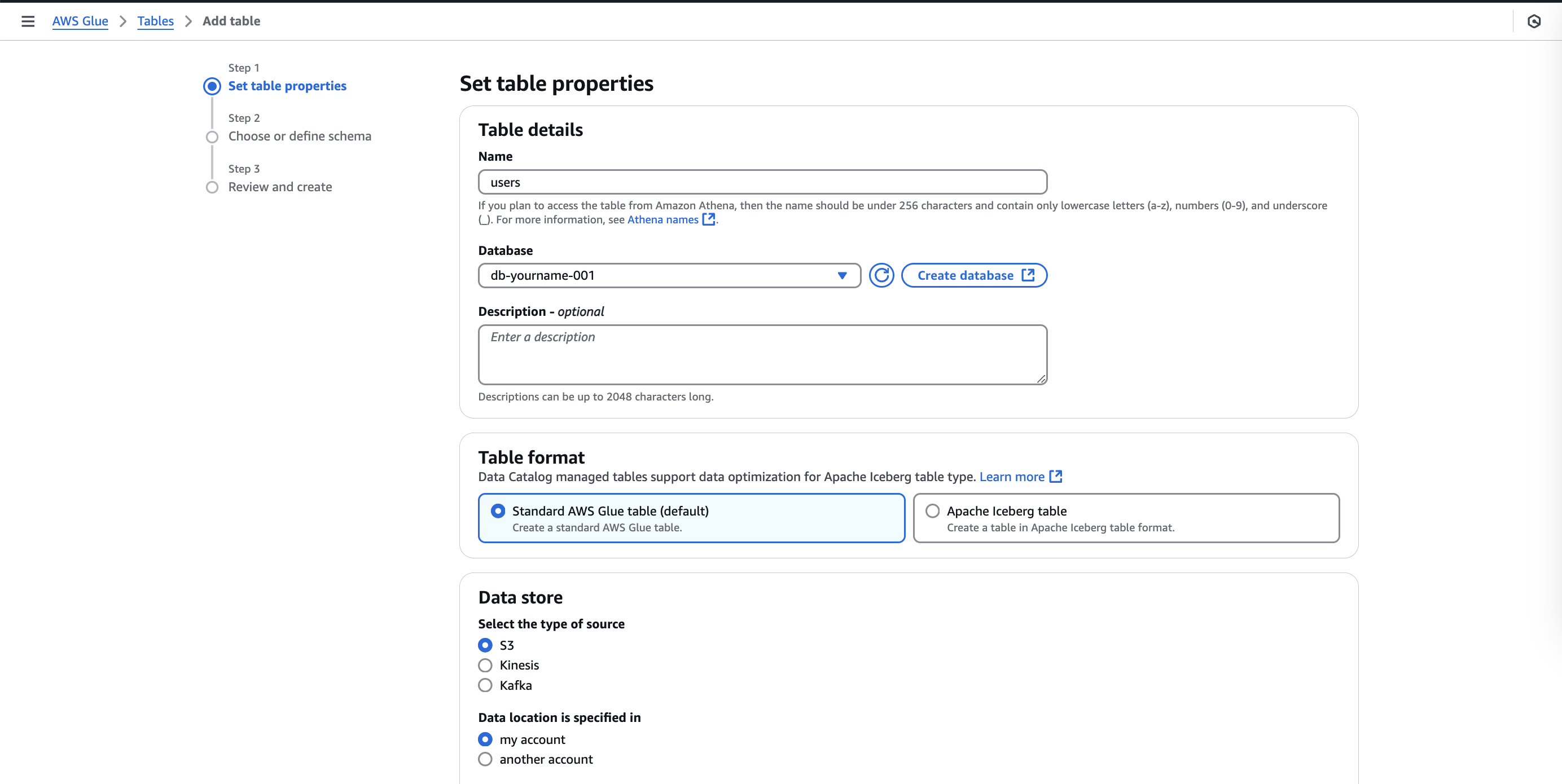

テーブル定義 ​

  • Name: users
  • Database: db-[自分の名前]-[番号]

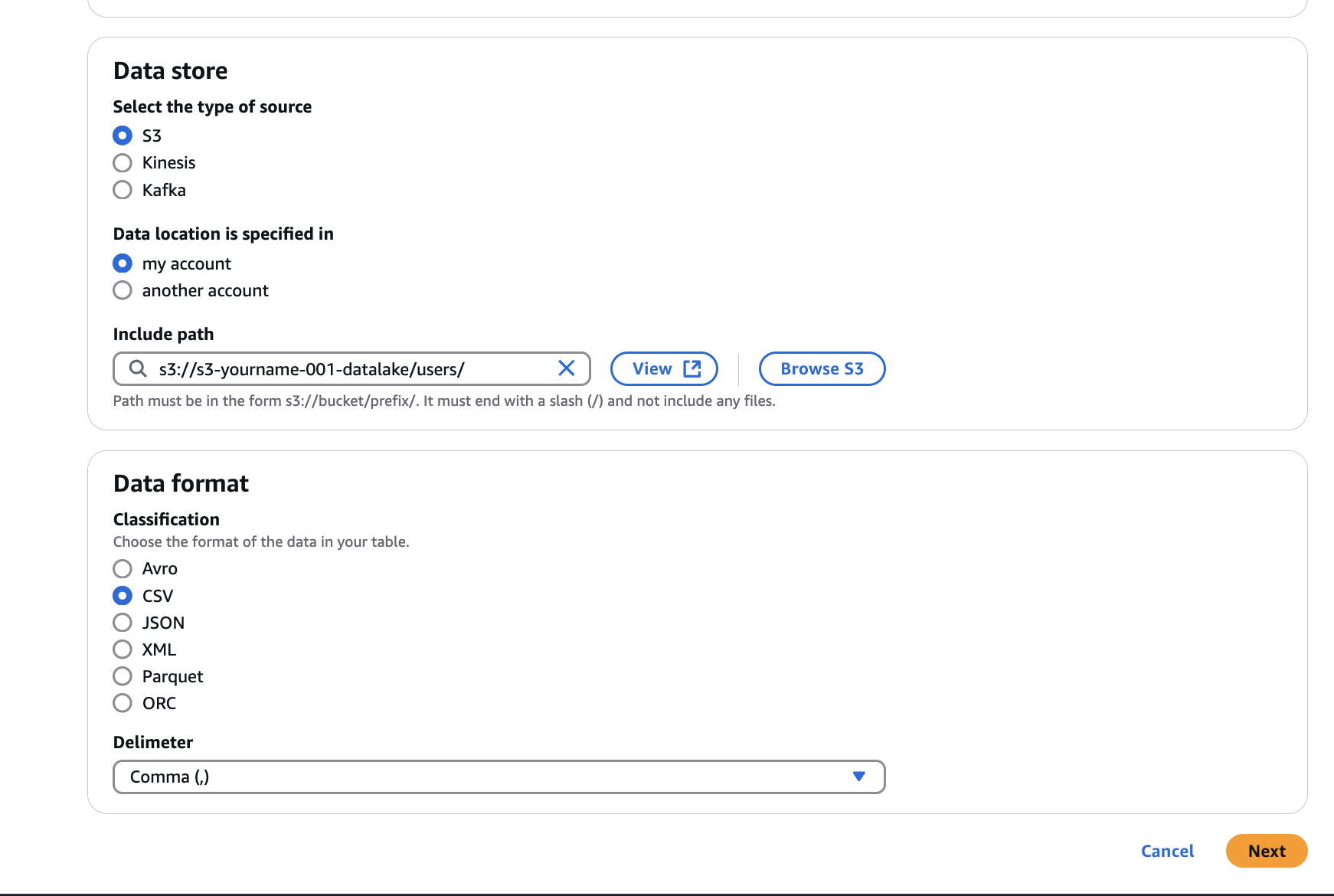

  • Data store:
    • Include path s3://s3-[自分の名前]-[番号]-datalake/users/
  • Data format: csv

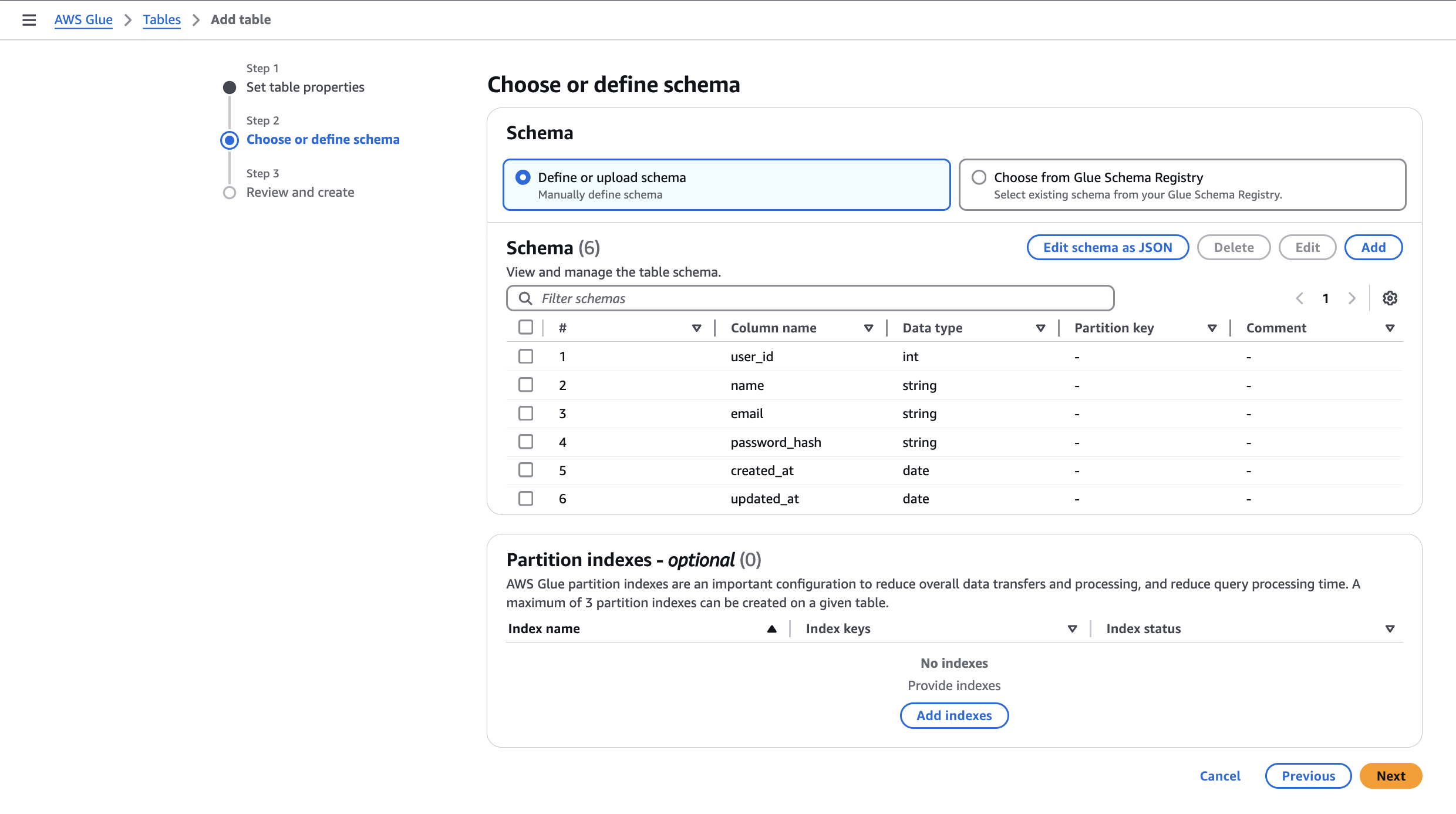

スキーマ定義 ​

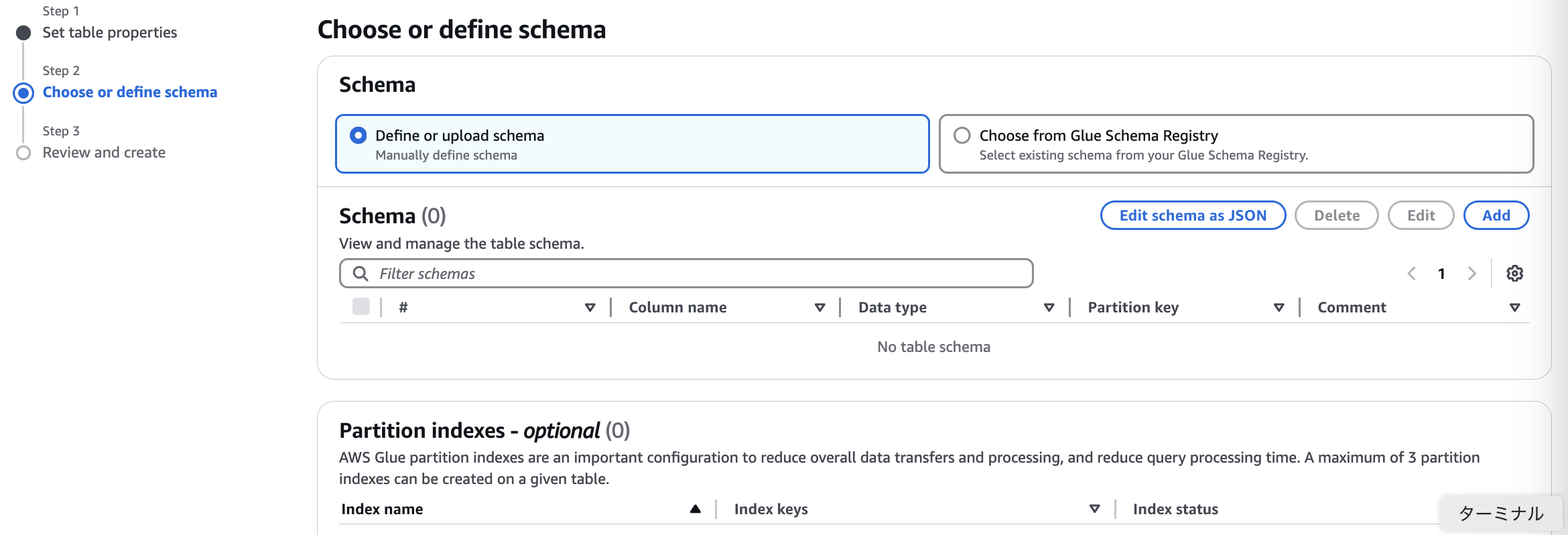

Define or upload schemaを選択

Edit schema as JSONをクリック

下記Jsonを設定

json
[
  {
    "Name": "user_id",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "name",
    "Type": "string",
    "Comment": ""
  },
  {
    "Name": "email",
    "Type": "string",
    "Comment": ""
  },
  {
    "Name": "password_hash",
    "Type": "string",
    "Comment": ""
  },
  {
    "Name": "age",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "gender",
    "Type": "string",
    "Comment": ""
  },

  {
    "Name": "created_at",
    "Type": "date",
    "Comment": ""
  },
  {
    "Name": "updated_at",
    "Type": "date",
    "Comment": ""
  }
]

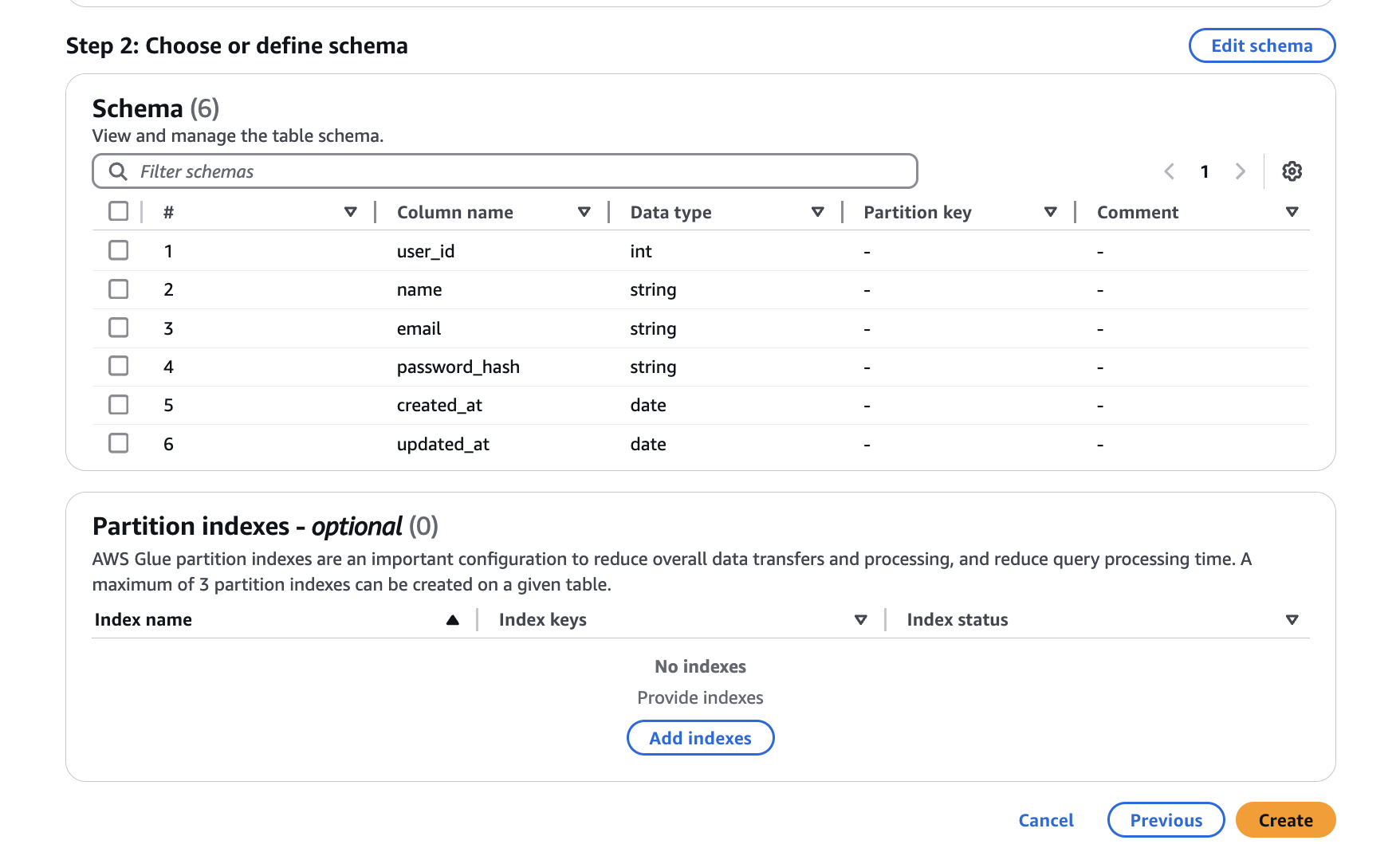

Create ​

他スキーマ作成 ​

手順「Tables」->「Create」を繰り返し同様にその他スキーマを作成する

products ​

Table details ​

  • Name: products
  • Database: db-[自分の名前]-[番号]
  • Data store: - Include path s3://s3-[自分の名前]-[番号]-datalake/products/
  • Data format: csv

Schema ​

json
[
  {
    "Name": "product_id",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "name",
    "Type": "string",
    "Comment": ""
  },
  {
    "Name": "description",
    "Type": "string",
    "Comment": ""
  },
  {
    "Name": "price",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "stock",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "created_at",
    "Type": "date",
    "Comment": ""
  },
  {
    "Name": "updated_at",
    "Type": "date",
    "Comment": ""
  }
]

orders ​

Table details ​

  • Name: orders
  • Database: db-[自分の名前]-[番号]
  • Data store: - Include path s3://s3-[自分の名前]-[番号]-datalake/orders/
  • Data format: csv

Schema ​

json
[
  {
    "Name": "order_id",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "user_id",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "total_price",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "order_status",
    "Type": "string",
    "Comment": ""
  },
  {
    "Name": "created_at",
    "Type": "date",
    "Comment": ""
  },
  {
    "Name": "updated_at",
    "Type": "date",
    "Comment": ""
  }
]

order_items ​

  • Name: order_items
  • Database: db-[自分の名前]-[番号]
  • Data store: - Include path s3://s3-[自分の名前]-[番号]-datalake/order_items/
  • Data format: csv

Schema ​

json
[
  {
    "Name": "order_item_id",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "order_id",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "product_id",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "quantity",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "price",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "created_at",
    "Type": "date",
    "Comment": ""
  }
]

weather ​

  • Name: weather
  • Database: db-[自分の名前]-[番号]
  • Data store: - Include path s3://s3-[自分の名前]-[番号]-datalake/weather/
  • Data format: csv

Schema ​

json
[
  {
    "Name": "weather_id",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "date_time",
    "Type": "date",
    "Comment": ""
  },
  {
    "Name": "temperature",
    "Type": "int",
    "Comment": ""
  },
  {
    "Name": "weather_condition",
    "Type": "string",
    "Comment": ""
  },
  {
    "Name": "created_at",
    "Type": "date",
    "Comment": ""
  },
  {
    "Name": "updated_at",
    "Type": "date",
    "Comment": ""
  }
]

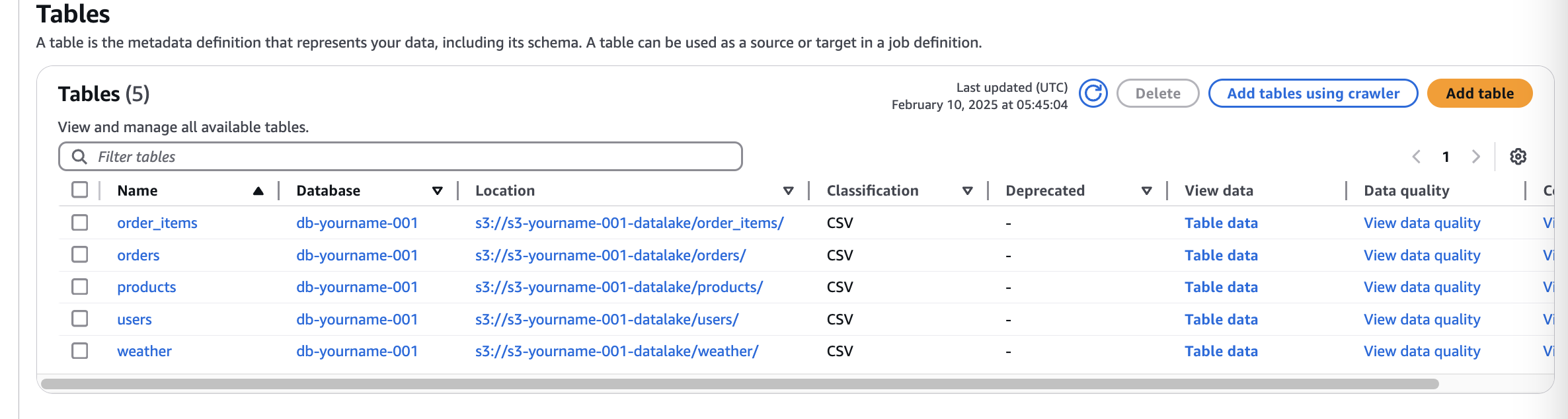

完了 ​

でけた
